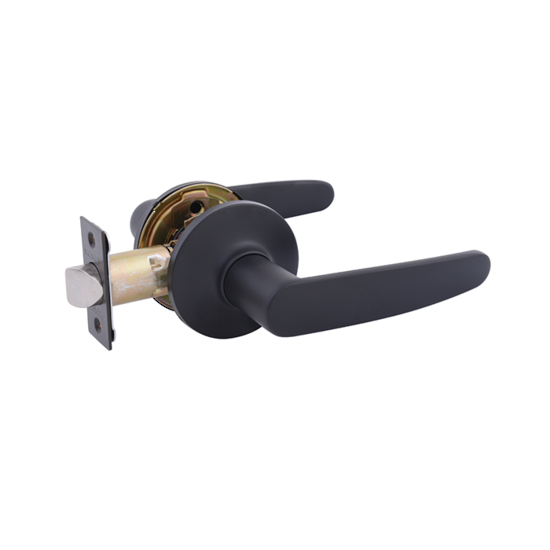

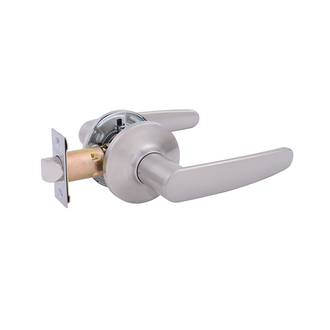

HAWTHORN PASSAGE LEVERSET
Functions: Passage
Finish: Satin Nickel and Black
Backset: 60-70mm Adjustable
Door thickness: 35mm - 45mm
Door Prep: 54mm cross bore and 25.4mm edge bore
Rose Cover: 65mm diameter
Material: Brass / Stainless Steel with Zinc Die cast lever
Latch:
Faceplate - Square Corners (25.4mm x 57mm)
Bolt - Zinc alloy with 1/2" throw (12.7mm)
Strike: Fully lipped, square corners (44.4mm x 57mm x 2.0mm)
