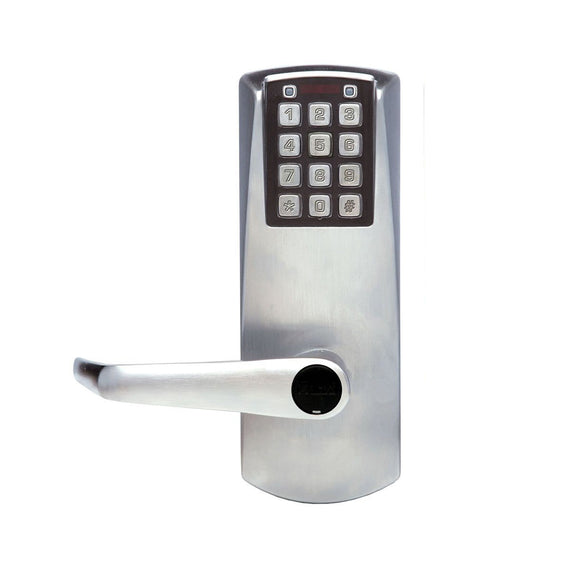

Dormakaba E-Plex 2000 Series




Collections: Digital Locks

Product type: Security Product

Vendor: Digital Locks

Tags: affordable, combination, commercial, digital, external, industrial, internal, key overide, mechanical



Add to the wishlist

PowerPlex 2000 Series


No Wires

- Requires no wiring to or through the door—eliminates risk of damage from pinched wires that can result in costly callbacks


 Locking Device Options

  • Cylindrical: Cylindrical latch with 3-hour UL/ULC fire rating
  • Rim Exit Device: Compatible with most leading brands of Exit Devices (Exit Device and mounting hardware not included)
  • American Standard Mortise: With 1¼" (32 mm) face plate; with and without deadbolt, auto deadbolt also available


Number of Codes

- Multiple Users—100 Codes



- Non-handed; pre-assembled for left-hand door installations—easily changed in the field


Audit Trail

- The most recent 1,000 events are recorded in memory, including the use of mechanical key override. Software is required to view Audit Events.



- Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software


Key Override (Optional)

  • Optional Key-in-Lever cylinder in Schlage "C" Keyway with black cap
  • Small format—Best and equivalent (6 or 7-pin length)


Operation Modes:

  • PIN access
  • Passage—can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours
  • Lockout


Authority Levels:

- Five different levels allow who has access to specific lock functions, including:

 Master Level — performs all set-up and programming functions
Manager Level — administers common programming functions
Access User Level — entry granted with valid PIN
Service Level — codes for single event or single day access, programmable in advance
Maintenance Level — no access is granted, information can be uploaded/downloaded to/from the lock


User Parameters

  • User Parameters: Code length—adjustable to accept 4 to 8 digits
  • Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
  • Re-lock time—adjustable from 2 to 20 seconds


Exit Device Compatibility

- Find a list of compatible exit devices in the Electronic Lock price book



The E-Plex 2000 Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 access codes and is programmed via the keypad or with optional Microsoft Excel-based software.
